Outline Dimension (m): 12.6x3.6x2.1
Cutting Scope (Height)* (Width) (m): 5x5.8
Machine Width (m): 5x5.8
Machine Width (m): 3
Adaptive Slope (°): ±18
Ground Pressure (MPa): 0.17
Total Weight (t): 95
Cutting Motor (kW): 260
Pump Station Motor (kW): 160
Economic Cutting Hardness (MPa): ≤90
Roof Bolter Number: 2
Roof Bolter Torque (N·m): 300
Roof Bolter Speed (r/min): 500
Maximum Stroke of Roof Bolter (mm): 1380
Forward Distance of Main Boom (mm): 5250

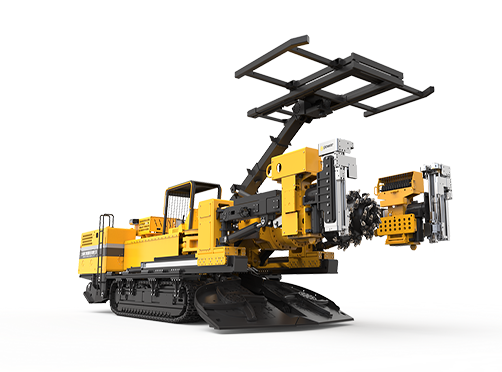

Integration The entire machine has a compact structure with flexible movements, integrating excavation, loading, transportation, bolting functions, etc. It can be equipped with 2 or 4 roofbolter.
Safety The rock bolting mechanism is interlocked with the roadheader, with temporary support achieving zero unsupported roof distance. During drilling-bolting operations, operators keep constantly under temporary support to protect their safety.
Efficient The on-board hydraulic roof bolter is of high torque, high rotation speed, and large thrust. The roof bolter is equipped with “one-click drilling” and “one-click installation” functions, with high speed and efficiency.
Intelligence Optional installation of intelligent modules that can realize unit-posture positioning monitoring, automatic guidance tunneling, automatic cross-section forming, tunnel scanning imaging, remote data transmission, remote monitoring, etc. intelligent functions.
Convenience The drilling rig mechanism is equipped with “one-click deployment” and “one-click retraction” functions; the roof bolter is equipped with a hydraulic clamp, enabling quick dismantling and pulling of the drill rod, which is convenient and effort-saving, significantly reducing the labor intensity of workers.
Reduce manpower During rock bolting operations, no manual support is required, and each drilling rig is operated by only one person, greatly reducing head-on personnel number during excavation.
Reliable The roof bolter adopts a cylindrical rail structure, with built-in hydraulic pipes, which is easy to maintain and reliable in performance.
